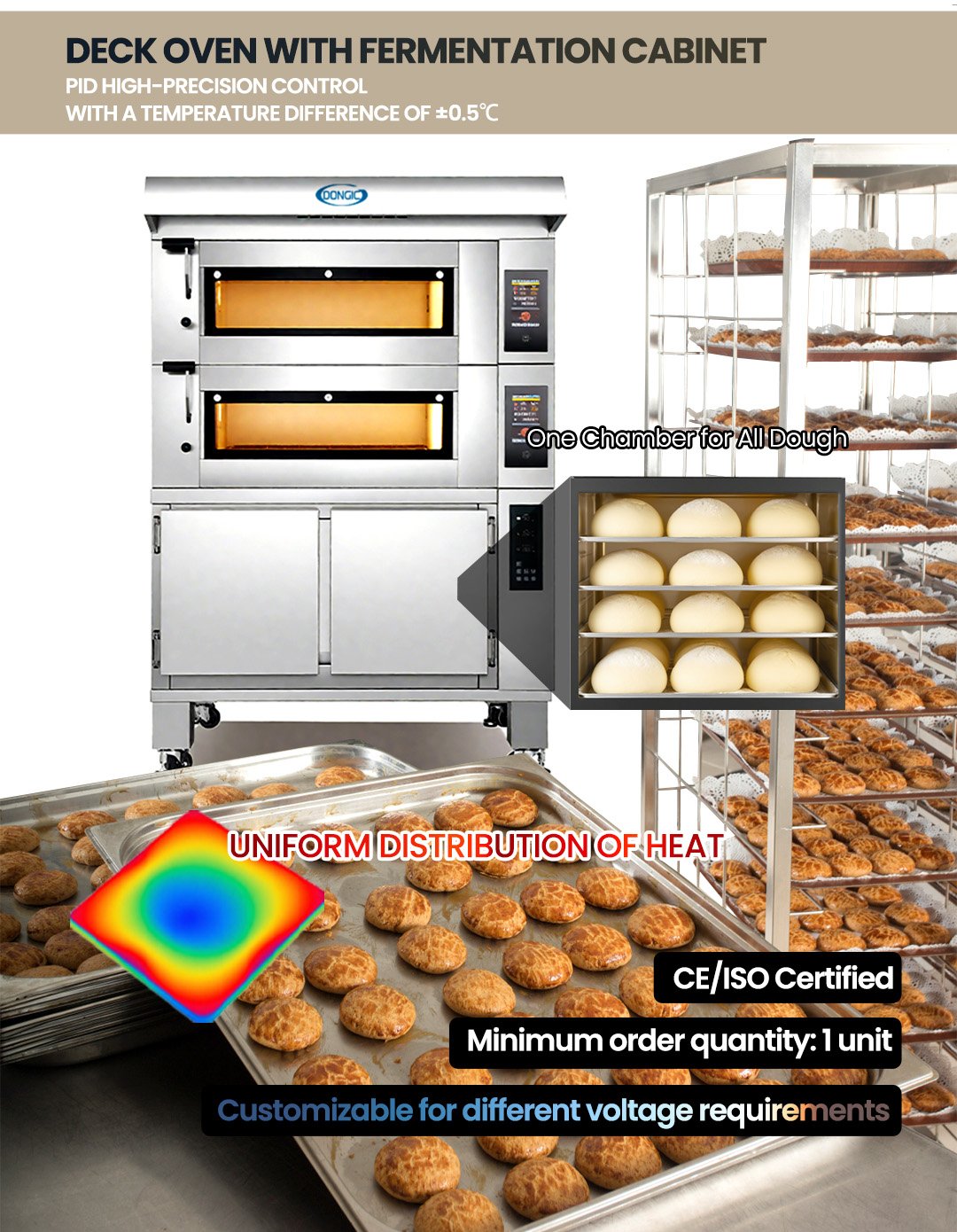

Electric Convection Baking Oven with 10 Layers Proofer
- PID-controlled oven heating.
- American heating tubes.
- High-temperature PTFE sealing.
- Wavy temperature-difference compensation.
- External saturated-steam system.
- Coated tempered-glass furnace door.
- Digital PID temperature and humidity control.
- Spray humidification.
- Built-in circulating fan.
- 304 stainless steel surrounding surfaces.
✓ OEM & ODM Available✓ MOQ 1 Set✓ 10–15 Day Production✓ Worldwide Shipping
Share full model and humidity requirements for an exact quote.
Factory support for integrated bakery oven and proofer projects.
Get an Exact Quote for This Oven and ProoferCLICK TO OPEN FORM →MOQ 1 Set · 10–15 Day Production · Product name and link filled automatically
Add the required full model and matching oven-proofer configuration, site voltage and frequency, baking temperature, fermentation temperature and humidity, quantity, and destination so our team can confirm the equipment and quote accurately.
Built for PID-Controlled Baking and Proofing
Designed for commercial bakeries that need stable PID-controlled baking, uniform external steam, and controlled fermentation temperature and humidity in one workflow.
Key Features
- Using American heating tubes, sealed with high-temperature PTFE, and compensated for wavy temperature differences at both ends.
- Power regulation, PID control heating method, fast and stable calculation speed.
- External steam system can quickly generate saturated steam with a certain pressure; and ensure that the baked products receive uniform steam, resulting in consistent quality of the products.
- The furnace door is made of coated tempered glass, effectively preventing temperature loss and enhancing the heat radiation effect inside the furnace.
- The surface around the oven and the furnace chamber are made of national standard 304 stainless steel and aluminum plated plate respectively.
- Fermentation cabinet digital tube intelligent control system, PID proportional control temperature and humidity, fast calculation speed.
- The fermentation cabinet is humidified by spray type, with built-in circulating fan and American heating pipe, which has high stability in heating and warming.
Technical Specifications
| Model: | DGOMGD04OF-E2/5, DGOMGD04OF-E2/10 |
| Dimension (mm): | 800*1040*1800/1300*1040*1836 |
| Capacity: | 2 Deck 2 Trays Oven, 5 Trays Proofer 2 Deck 4 Trays Oven, 10 Trays Proofer |
| Voltage/Power: | 380V~50/60Hz, 6.1KW/0.65KW 380V~50/60Hz, 11.1KW/0.65KW |
| Humidity: | 0~99 |
| Baking Oven Temperature: | Room temperature~400℃ |
| Fermentation Temperature: | Room temperature~50℃ |
