Commercial Electric/Gas Multi-layer Steam Cabinet Steam
- Choose a 6-tray or 9-tray configuration.
- Electric and gas configurations are available.

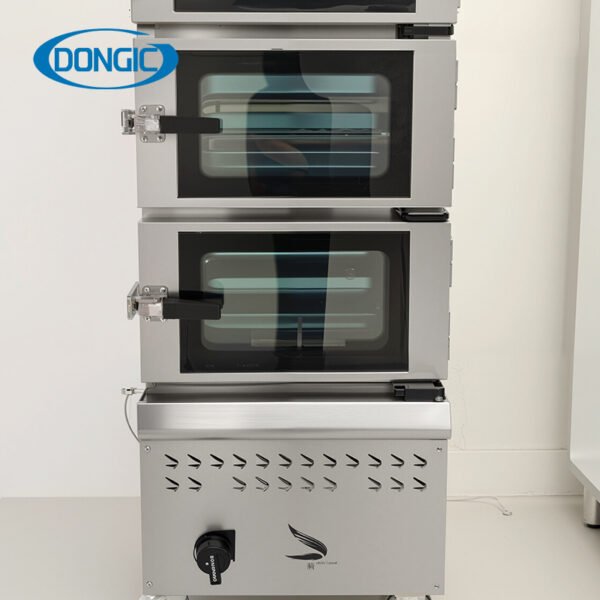

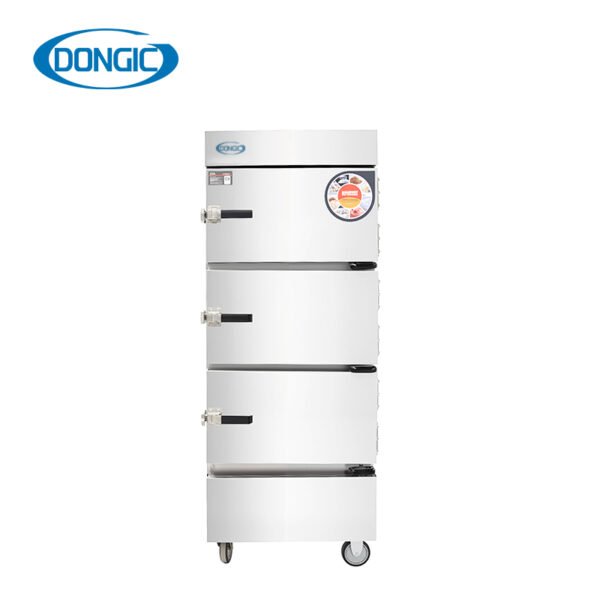

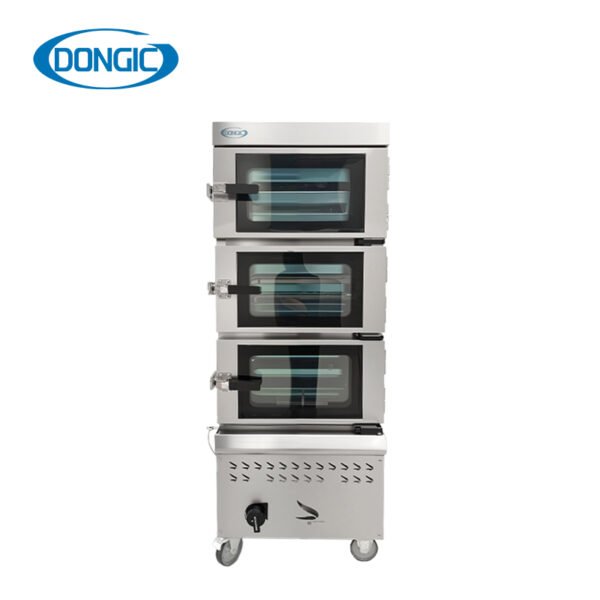

- Stainless steel and glass door models are available.
- Each steaming section has an independent steam valve switch.
- Each 400*600*50 pan has a 4kg capacity.
- Automatic water inlet and overflow support daily operation.
- Gas models include flameout and gas-cutoff protection.
- A water level gauge helps prevent dry burning.
- The 3.5cm insulation layer supports thermal insulation.
- Brake silent wheels support positioning and movement.
✓ OEM & ODM Available✓ MOQ 1 Set✓ 10–15 Day Production✓ Worldwide Shipping
Share energy type and door configuration for an exact quote.
Factory support for restaurants, hotels, and commercial kitchens.
Get an Exact Quote for This Multi-Layer Steam CabinetCLICK TO OPEN FORM →MOQ 1 Set · 10–15 Day Production · Product name and link filled automatically
Add your required power type, door configuration, tray capacity, quantity, and destination so our team can quote accurately.
Built for Multi-Layer Electric or Gas Steam Cooking
Designed for commercial kitchens that need 6- or 9-tray steaming capacity with electric or gas configurations. Stainless steel and glass door model options, layered steaming sections, and independent steam valve switches support different operating requirements.
Key Features

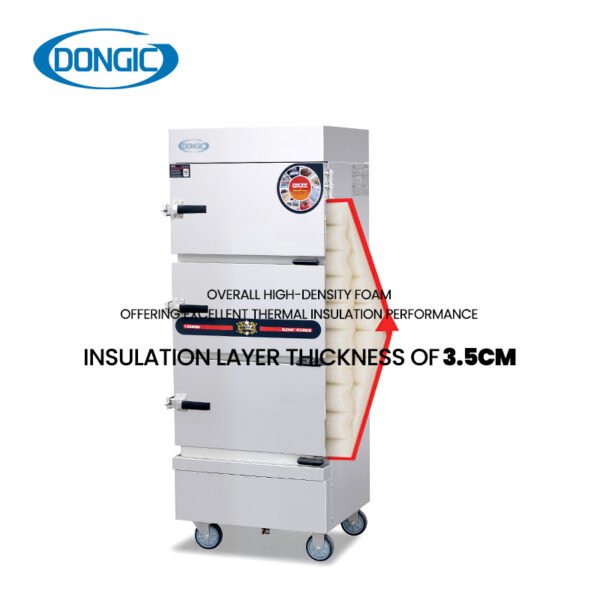

- Overall high-density foaming, with an insulation layer thickness of 3.5cm, and excellent thermal insulation effect.
- Automatic water inlet and overflow device for safer and more reliable use.
- 304 stainless steel electric heating tube, pure copper steam cap.
- New-type multi-airbag, embedded silicone door seal, with reliable sealing performance.

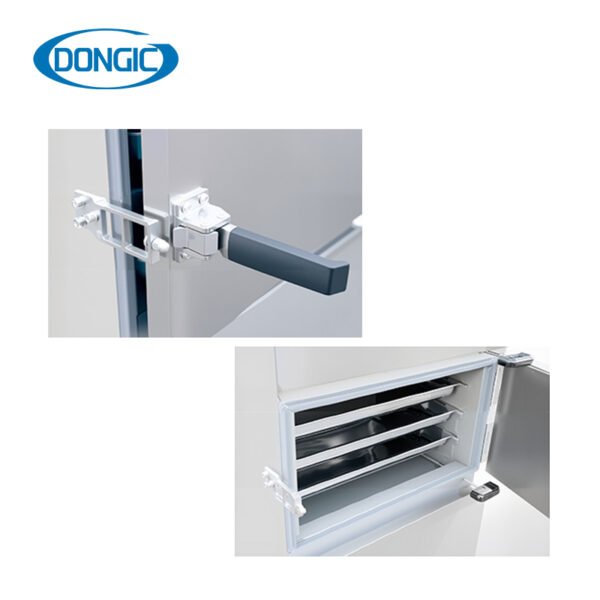

- Six-bolt large hinges, which are more firm and durable; there are supporting ribs on both sides of the box, ensuring long-lasting durability and no deformation.
- Layered steaming cabinet, each section of the steaming cabinet is equipped with an independent steam valve switch and a back-panel type air outlet cap.
- Adopts brake silent wheels. Efficient and energy-saving, with simple operation.
- Gas mode: Rotary electronic ignition system, compliant with gas 3C standards, and featuring a pull-out ignition device.
- Equipped with a flameout and gas cutoff protection device for enhanced safety. A water level gauge displays the water level in the tank to prevent dry burning.
Technical Specifications
| Model | DGSCK10-E6S, DGSCK10-E9S, DGSCK11-G6S, DGSCK11-G9S (Stainless Steel Door) DGSCK10-E6G, DGSCK10-E9G, DGSCK11-G6G, DGSCK11-G9G (Glass Door) |
| Dimension (mm) | 720*640*1500 - 720*640*1850 |
| Capacity | 6 trays, 9 trays |
| Pan Size(mm) | 400*600*50 |
| Capacity Per Pan | 4kg |
| Voltage/Power | Electric: 380V~50/60Hz, 9kW/12kW |
| Water Inlet Pressure | ≤＜4kPa |
| Number of Air Inlets | 1 |
| Gas Consumption | 1.1 m³/hour |
| Wiring Method | Y-type connection |
| Diameter of Water Inlet | DN 15mm |
| Steam Pressure | ≤＜0.02 MPa |
| Power | Natural gas: 1.0, Liquefied petroleum gas: 0.69 |
