Name: Commercial Electric Fryer with Oil Filter Cart - Dongic
Brand: DONGIC
SKU: DGFMD03F-E1/2

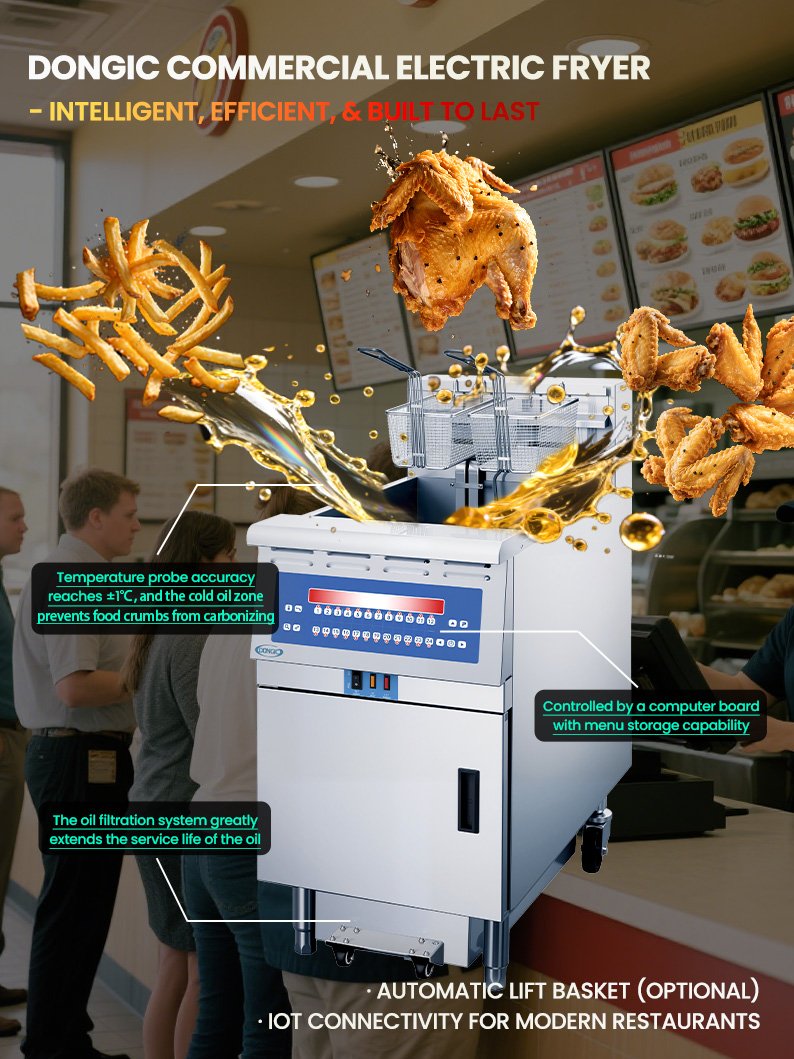

Commercial Electric Fryer with Oil Filter Cart

37.8L single-cylinder capacity.
Computer-board control with up to 24 menus.
Half-tank storage for up to 12 menus.
Optional automatic lifting and IoT.
Built-in oil filter system.
Stainless steel oil tank and cabinet with sandblasted finish.
Reversible ribbon heaters for easier cleaning.
Temperature-probe accuracy of ±1℃.
195℉ (91℃) to 385℉ (196℃) temperature range.
IPX4 waterproof rating.
Multi-switch and 24V low-voltage safety system.
Cold oil zone with a 1-1/2” quick-drain valve.
Adjustable feet, casters, and tool-free basket hanger plate.

✓ OEM & ODM Available✓ MOQ 1 Set✓ 10–15 Day Production✓ Worldwide Shipping

Share voltage and filtration workflow for an exact quote.

Request a Quote →

Factory support for high-capacity commercial frying and oil filtration.

▶

Get an Exact Quote for This Electric Fryer with Oil Filter CartCLICK TO OPEN FORM →MOQ 1 Set · 10–15 Day Production · Product name and link filled automatically

Add the required voltage, frying temperature and menu settings, automatic lifting and IoT options, and built-in oil-filtration workflow so our team can prepare the correct quotation.

Built for High-Volume Frying with Built-In Oil Filtration

Designed for commercial kitchens that need 37.8L single-cylinder capacity, programmable menus, precise temperature sensing, and a built-in oil filtration workflow. Confirm the voltage, frying settings, optional lifting and IoT functions, and filtration requirements before quotation.

Key Features

Configuration: 2 Separate-tank Fry Baskets.

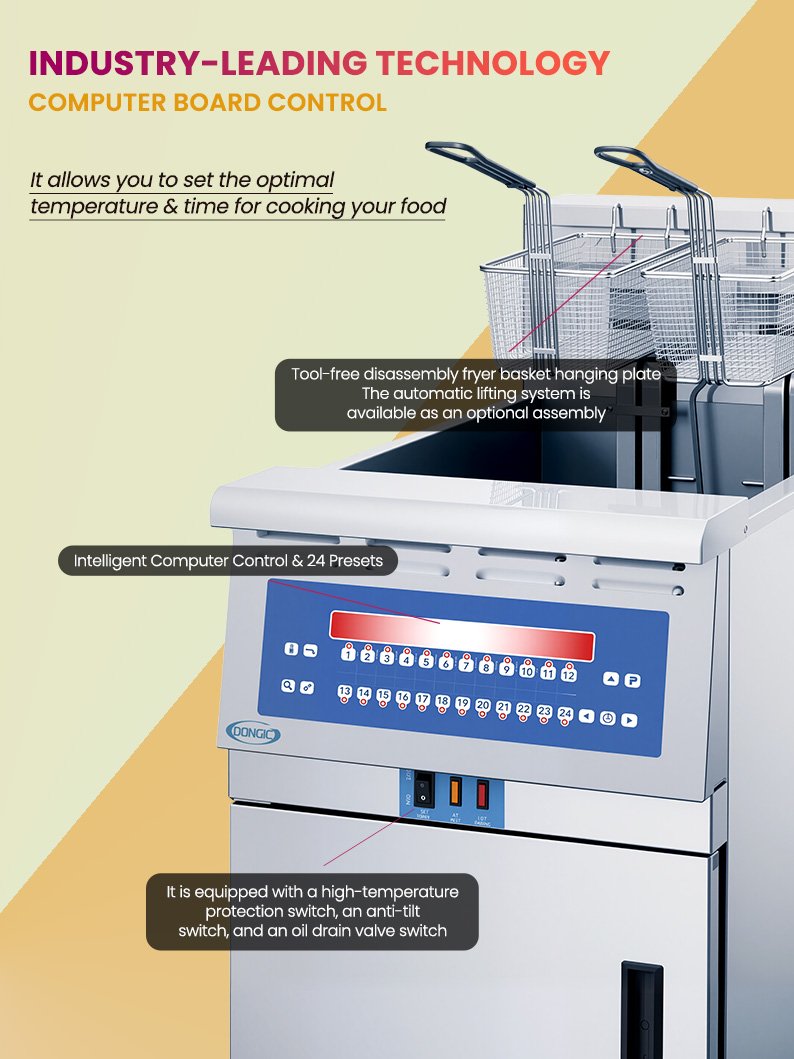

Controlled by a Computer Board, with a Storage Capacity of Up to 24 Menus (12 Menus Half Tank).
Automatic Lifting Rod: Optional. IoT Functionality: Optional.
Full Stainless Steel Oil Tank and Cabinet Body, with Fine Sandblasting Finish on the Surface.

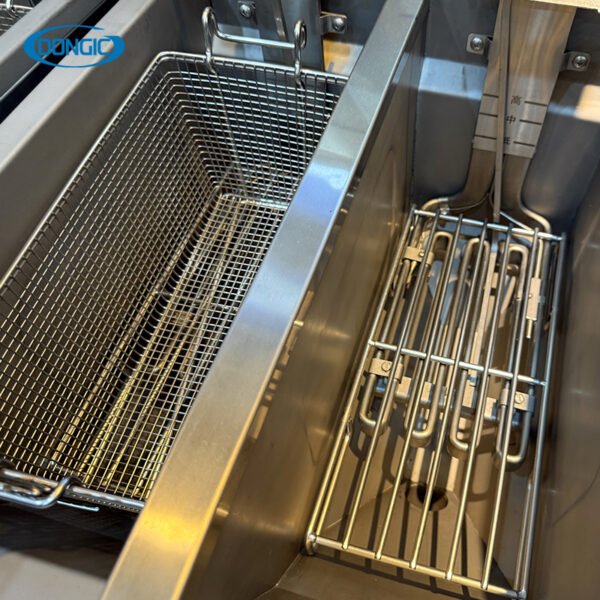

Ribbon Heating Tube with Low Power Density and Extremely High Thermal Efficiency, Reversible for Easy Cleaning, and Temperature Probe Accuracy of ±1℃.
Temperature Range: 195℉ (91℃) to 385℉ (196℃).
1-1/2” Oil Drain Valve for Quick Oil Draining to Prevent Clogging.
Waterproof Rating: IPX4.
Equipped with a High-Temperature Protection Switch, a Tilt Protection Switch, and an Oil Drain Valve Switch; the 24V Low-Voltage Control System Ensures Higher Safety.
Cold Oil Zone Prevents Carbonization of Food Debris.

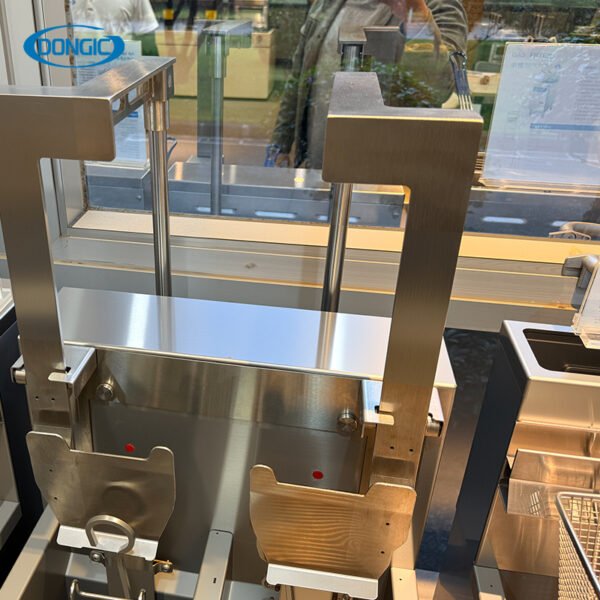

9-inch Adjustable Feet and Universal Casters (Stable and Reliable), Tool-free Detachable Fryer Basket Hanger Plate, Built-in Oil Filter System.

Technical Specifications

Model	DGFMD03F-E1/2
Dimension (mm)	5077971143
Inner Size(mm)	450420120
Capacity	37.8L (Single Cylinder)
Voltage/Power	AC220-240V/380-415V~50Hz, 3N, 17KW
Oil Filtration System	The built-in oil filtering system not only saves the space, but also ensures that the fried food maintains high-quality outcome, while also greatly extending the service life of the oil and reducing operating costs.
