Commercial 3 Tanks Electric Deep Fryer
- Fixed 15L*2 + 30L three-tank capacity.
- Computer-board control with up to 24 menus.
- Optional automatic lifting and IoT.
- Built-in oil filter system.
- Stainless steel oil tank and cabinet with sandblasted finish.
- Reversible ribbon heaters for easier cleaning.
- Temperature-probe accuracy of ±1℃.
- 195℉ (91℃) to 385℉ (196℃) temperature range.
- IPX4 waterproof rating.
- Multi-switch and 24V low-voltage safety system.
- Cold oil zone with a 1-1/2” quick-drain valve.
- Adjustable feet, casters, and tool-free basket hanger plate.
✓ OEM & ODM Available✓ MOQ 1 Set✓ 10–15 Day Production✓ Worldwide Shipping
Share electrical supplies and filtration workflow for an exact quote.
Factory support for multi-tank commercial frying and oil filtration.
Get an Exact Quote for This Three-Tank Electric Deep FryerCLICK TO OPEN FORM →MOQ 1 Set · 10–15 Day Production · Product name and link filled automatically
Add the required main and oil-filter electrical supplies, frying temperature and menu settings, automatic lifting and IoT options, and filtration workflow so our team can prepare the correct quotation.

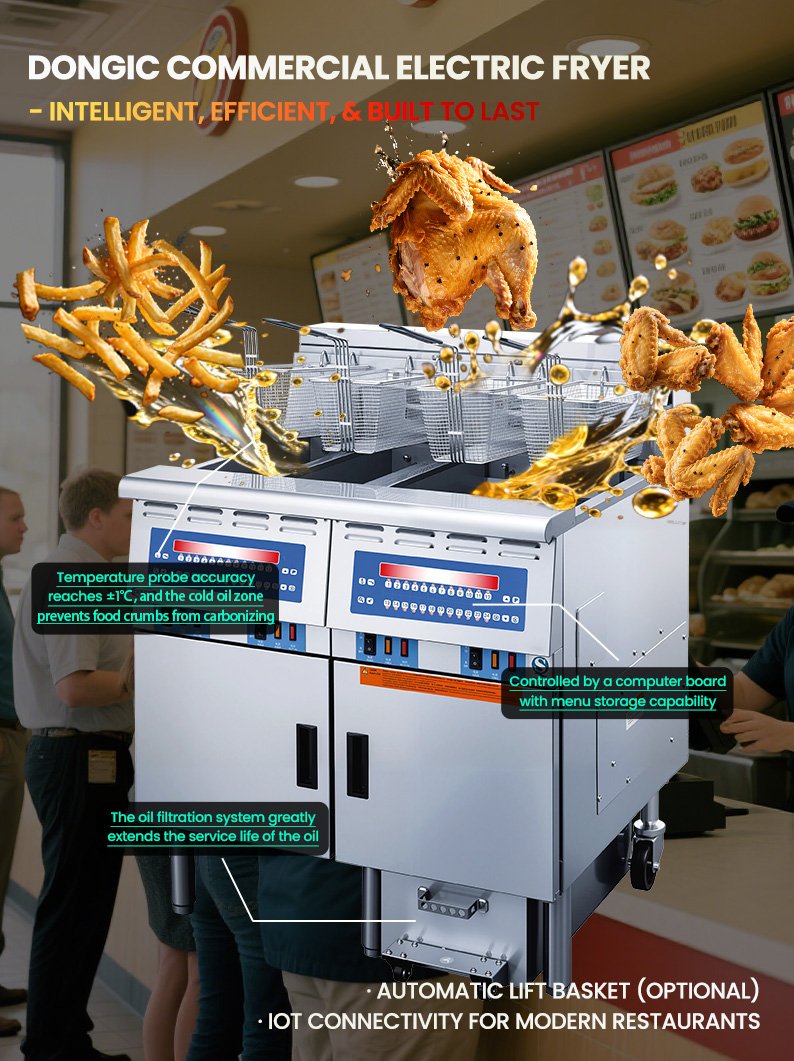

Built for Three-Tank Frying with Built-In Oil Filtration
Designed for commercial kitchens that need two 15L half tanks plus one 30L full tank, programmable menus, precise temperature sensing, and a built-in oil filtration workflow. Confirm both electrical supplies, frying settings, optional lifting and IoT functions, and filtration requirements before quotation.
Key Features

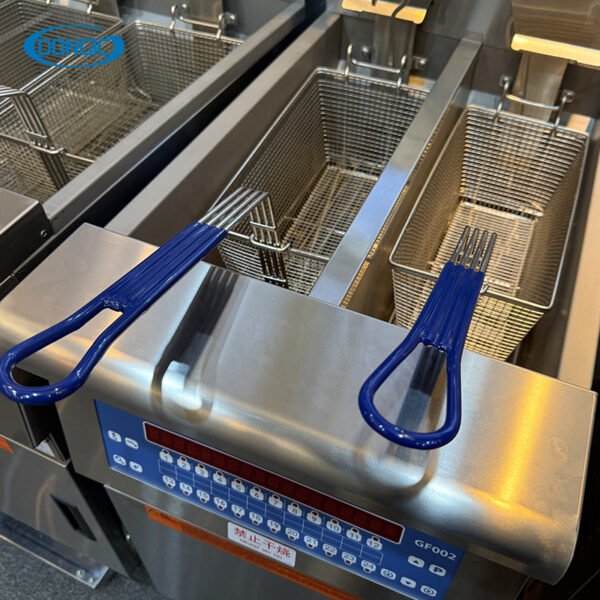

- Configuration: 2 Separate-tank Fry Baskets.

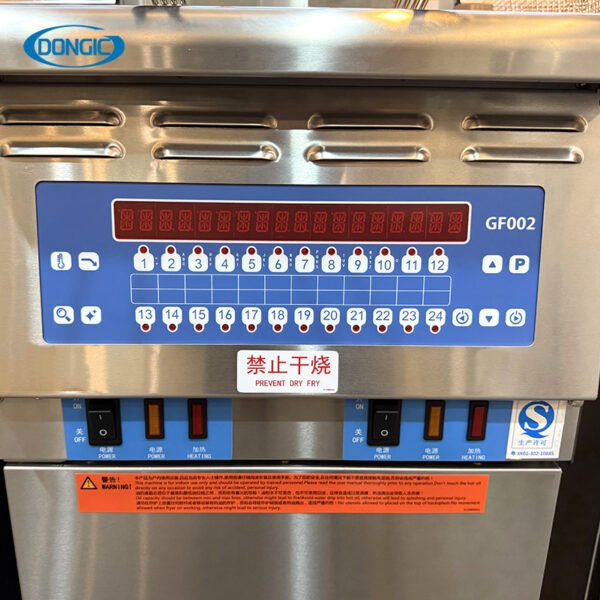

- Controlled by a Computer Board, with a Storage Capacity of Up to 24 Menus.
- Automatic Lifting Rod: Optional. IoT Functionality: Optional.

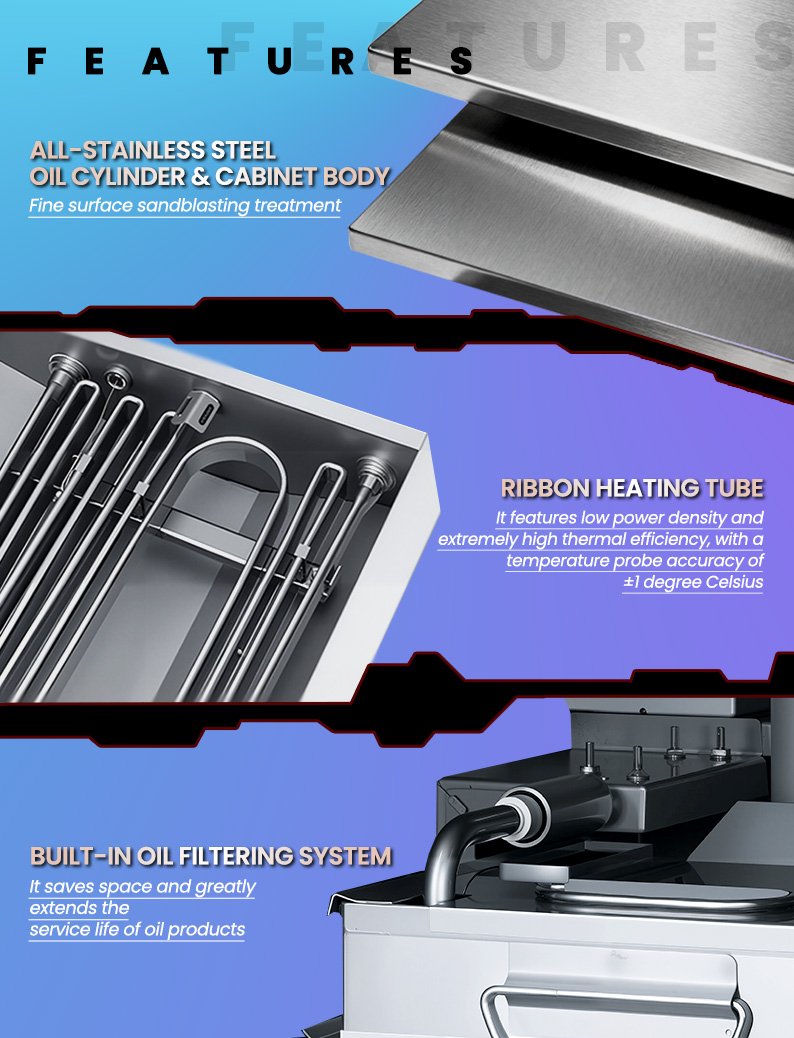

- Full Stainless Steel Oil Tank and Cabinet Body, with Fine Sandblasting Finish on the Surface.

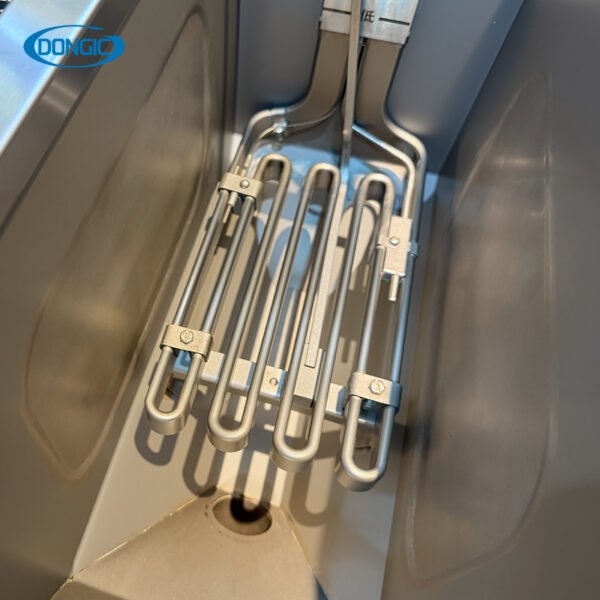

- Ribbon Heating Tube with Low Power Density and Extremely High Thermal Efficiency, Reversible for Easy Cleaning, and Temperature Probe Accuracy of ±1℃.
- Temperature Range: 195℉ (91℃) to 385℉ (196℃).
- 1-1/2” Oil Drain Valve for Quick Oil Draining to Prevent Clogging.
- Waterproof Rating: IPX4.

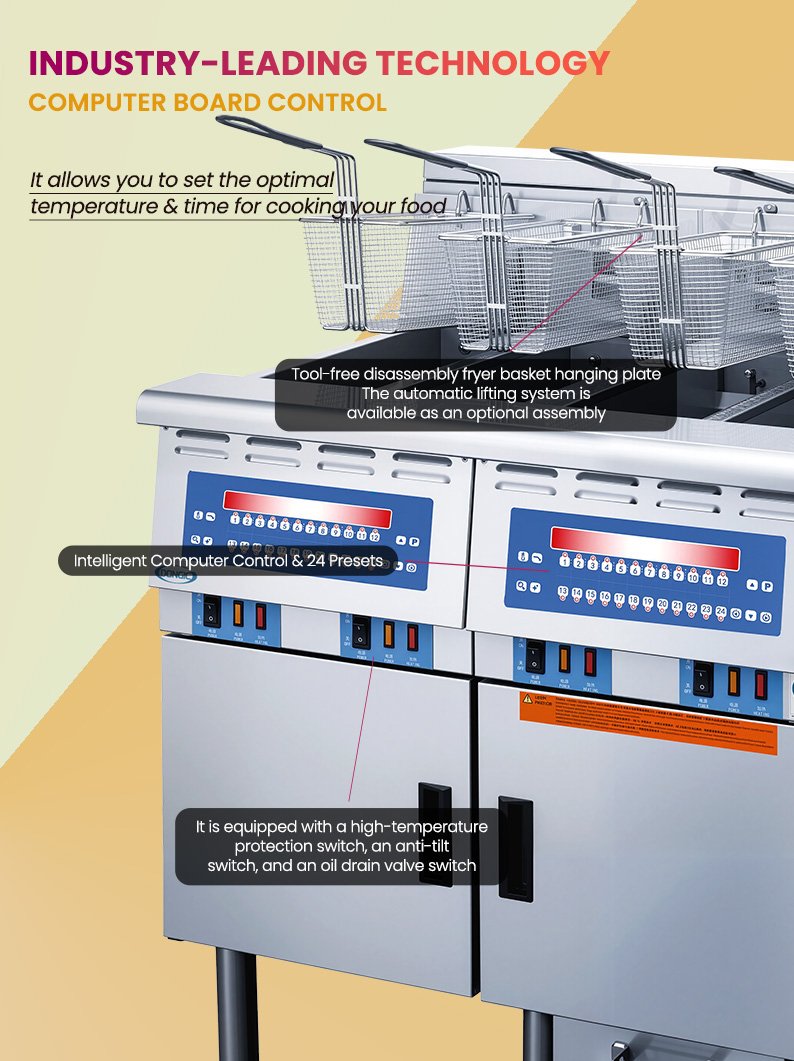

- Equipped with a High-Temperature Protection Switch, a Tilt Protection Switch, and an Oil Drain Valve Switch; the 24V Low-Voltage Control System Ensures Higher Safety.
- Cold Oil Zone Prevents Carbonization of Food Debris.
- 9-inch Adjustable Feet and Universal Casters (Stable and Reliable), Tool-free Detachable Fryer Basket Hanger Plate, Built-in Oil Filter System.
Technical Specifications
| Model | DGFMD04F-E3/4 |
| Dimension (mm) | 870*797*1143 |
| Inner Size(mm) | 177*420*120/Half Tank 355*420*120/Full Tank |
| Capacity | 15L*2+30L |
| Voltage/Power | AC240V/380-415V~50Hz, 3N, 28（7+7+14）KW Oil Filter System: 220-240V, 50/60Hz, 250W |

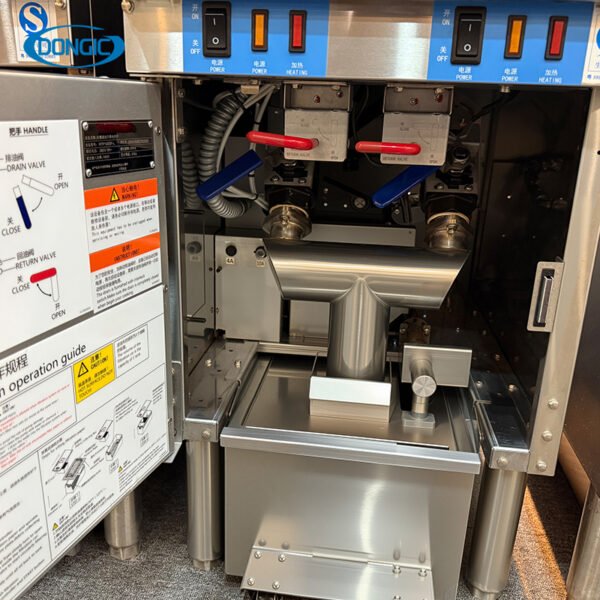

| Oil Filtration System | The built-in oil filtering system not only saves the space, but also ensures that the fried food maintains high-quality outcome, while also greatly extending the service life of the oil and reducing operating costs. |
