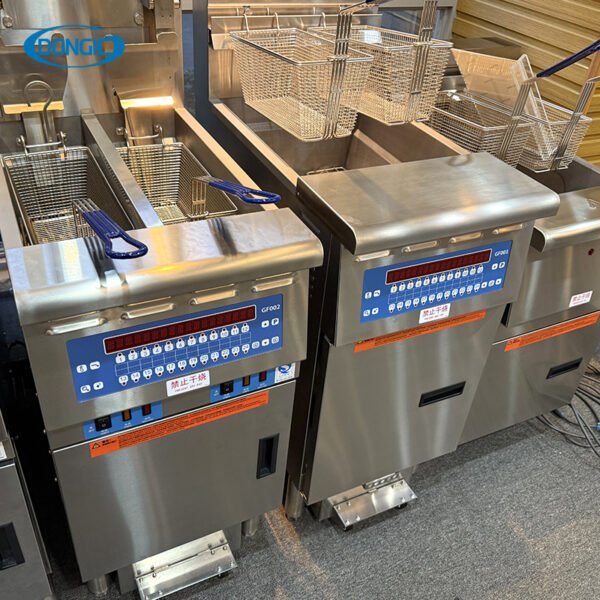

30L Single Cylinder Electric Deep Fryer with Oil Filtration System

Single-cylinder commercial electric fryer for restaurant production.
Computer-board control with up to 24 stored menus.
Optional automatic lifting and IoT functionality.
Full stainless steel oil tank and cabinet body.
Built-in oil filtration supports easier oil management.
Reversible ribbon heating tube for easier cleaning.
±1℃ temperature-probe accuracy.
Cold oil zone helps prevent food-debris carbonization.

✓ OEM & ODM Available✓ MOQ 1 Set✓ 10–15 Day Production✓ Worldwide Shipping

Share your frying workflow and electrical requirements for an exact quote.

Request a Quote →

Factory support for programmable single-cylinder electric fryers.

▶

Get an Exact Quote for This Single-Cylinder Electric FryerCLICK TO OPEN FORM →MOQ 1 Set · 10–15 Day Production · Product name and link filled automatically

Add the required frying workflow, basket setup, optional lifting and IoT functions, electrical supply, target foods, production volume, quantity, and destination so our team can quote accurately.

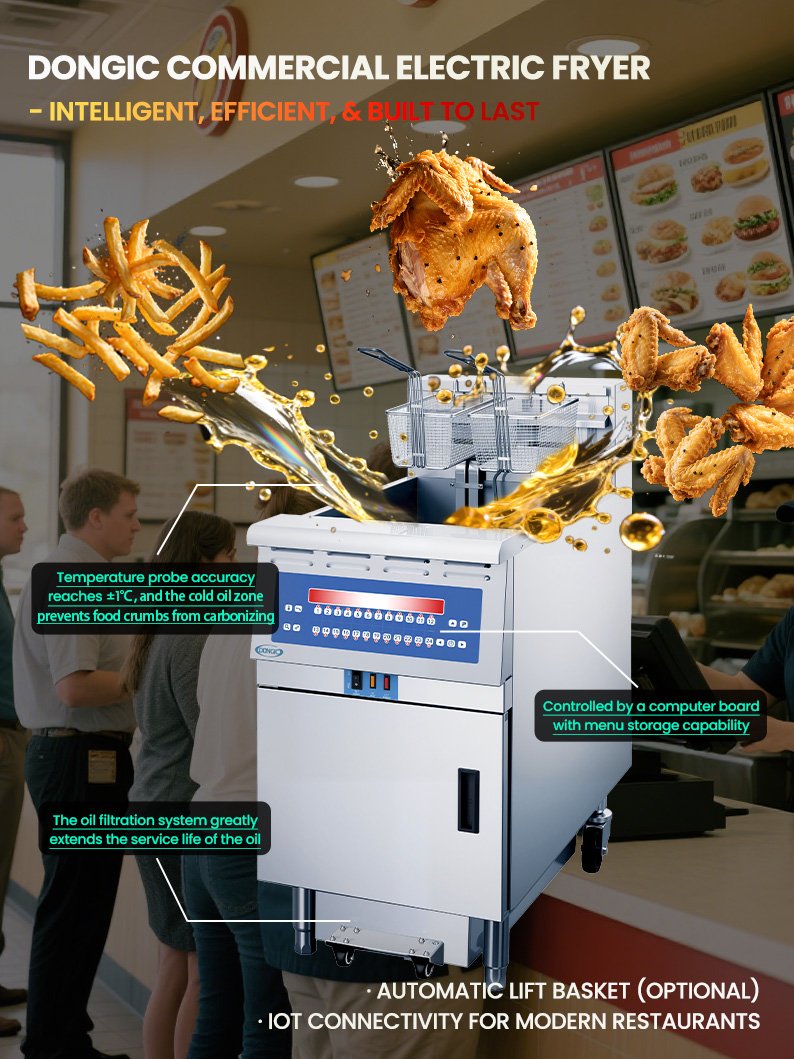

Built for Programmable Single-Cylinder Frying with Oil Filtration

Computer-board control supports repeatable frying programs, while the stainless steel tank, reversible heating tube, and built-in oil filtering system support consistent commercial production and easier oil management.

Key Features

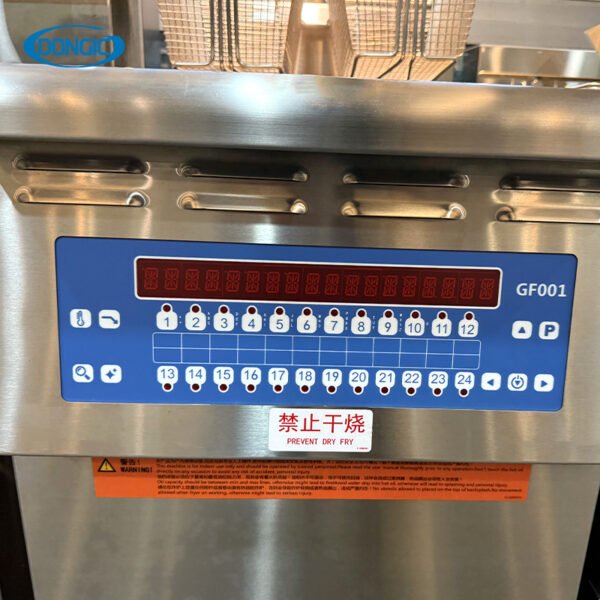

Controlled by a Computer Board, with a Storage Capacity of Up to 24 Menus (12 Menus Half Tank).
Automatic Lifting Rod: Optional. IoT Functionality: Optional.
Full Stainless Steel Oil Tank and Cabinet Body, with Fine Sandblasting Finish on the Surface.
Ribbon Heating Tube with Low Power Density and Extremely High Thermal Efficiency, Reversible for Easy Cleaning, and Temperature Probe Accuracy of ±1℃.
Temperature Range: 195℉ (91℃) to 385℉ (196℃).
1-1/2” Oil Drain Valve for Quick Oil Draining to Prevent Clogging.
Waterproof Rating: IPX4.
Equipped with a High-Temperature Protection Switch, a Tilt Protection Switch, and an Oil Drain Valve Switch; the 24V Low-Voltage Control System Ensures Higher Safety.
Cold Oil Zone Prevents Carbonization of Food Debris.
9-inch Adjustable Feet and Universal Casters (Stable and Reliable), Tool-free Detachable Fryer Basket Hanger Plate, Built-in Oil Filter System.

Technical Specifications

Model:	DGFMD11F-E1/2
Dimension (mm):	4347971143
Inner Chamber Dimensions (mm):	355420120
Capacity:	30L (Single Cylinder)
Voltage/Power:	AC220-240V/380-415V~50Hz, 3N, 14KW

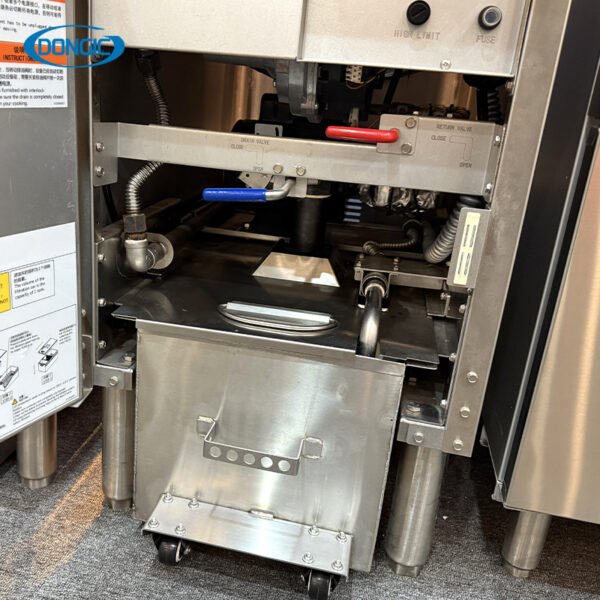

Oil Filtration System:	The built-in oil filtering system not only saves the space, but also ensures that the fried food maintains high-quality outcome, while also greatly extending the service life of the oil and reducing operating costs.
