IOT 30L Double Cylinder Electric Deep Fryer with Oil Filtration System
- Double-cylinder electric fryer with 30L total capacity.
- Computer-board control with up to 24 stored menus.
- Built-in oil filtering system.
- Optional automatic lifting and IoT functionality.
- Full stainless steel oil tanks and cabinet body.
- Reversible ribbon heating tubes for easier cleaning.
- ±1℃ temperature-probe accuracy.
- Multiple protection switches with 24V low-voltage control.
✓ OEM & ODM Available✓ MOQ 1 Set✓ 10–15 Day Production✓ Worldwide Shipping
Share your automation requirements and voltage for an exact quote.
Factory support for programmable double-cylinder electric fryers.
Get an Exact Quote for This 30L Double-Cylinder Electric FryerCLICK TO OPEN FORM →MOQ 1 Set · 10–15 Day Production · Product name and link filled automatically
Add the automatic lifting and IoT requirements, supply voltage, frying workflow, installation details, quantity, and destination so our team can quote accurately.

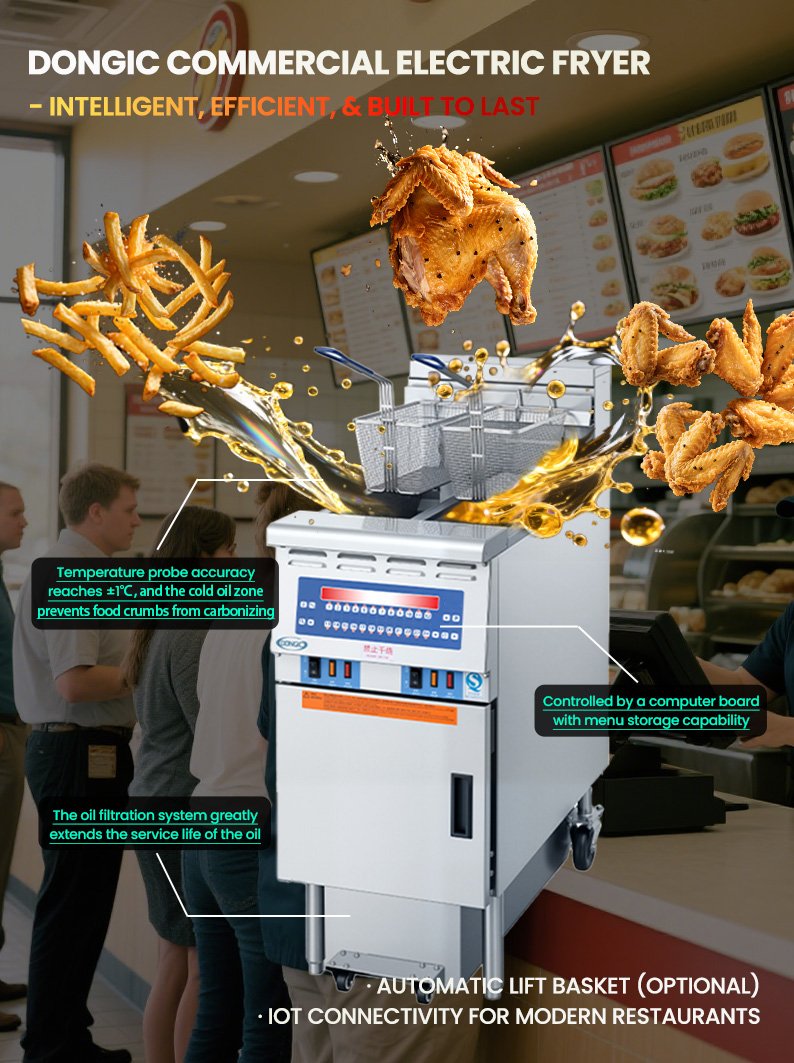

Built for Connected, Programmable Commercial Frying
Computer-board control stores repeatable menus for double-cylinder frying, while the built-in oil filtering system supports oil management and optional lifting and IoT functions adapt to different workflows.
Key Features

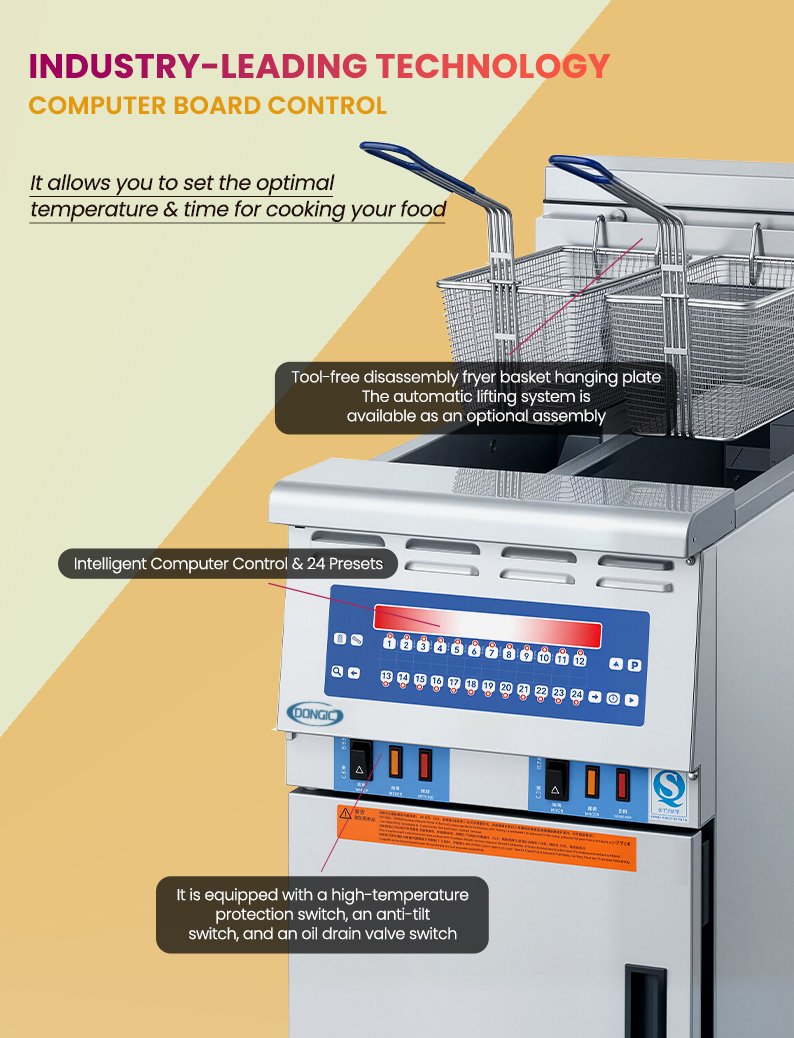

- Controlled by a Computer Board, with a Storage Capacity of Up to 24 Menus (12 Menus Half Tank).
- Automatic Lifting Rod: Optional. IoT Functionality: Optional.
- Full Stainless Steel Oil Tank and Cabinet Body, with Fine Sandblasting Finish on the Surface.
- Ribbon Heating Tube with Low Power Density and Extremely High Thermal Efficiency, Reversible for Easy Cleaning, and Temperature Probe Accuracy of ±1℃.
- Temperature Range: 195℉ (91℃) to 385℉ (196℃).
- 1-1/2” Oil Drain Valve for Quick Oil Draining to Prevent Clogging.
- Waterproof Rating: IPX4.
- Equipped with a High-Temperature Protection Switch, a Tilt Protection Switch, and an Oil Drain Valve Switch; the 24V Low-Voltage Control System Ensures Higher Safety.
- Cold Oil Zone Prevents Carbonization of Food Debris.
- 9-inch Adjustable Feet and Universal Casters (Stable and Reliable), Tool-free Detachable Fryer Basket Hanger Plate, Built-in Oil Filter System.
Technical Specifications
| Model: | DGFMD02F-E2/2 |
| Dimension (mm): | 443*797*1143 |
| Inner Chamber Dimensions (mm): | 177*420*120/Half Tank |
| Capacity: | 15L/cylinder*2 |
| Voltage/Power: | AC220-240V/380-415V~50Hz, 3N, 7kW*2 |
| Oil Filtration System: | The built-in oil filtering system not only saves the space, but also ensures that the fried food maintains high-quality outcome, while also greatly extending the service life of the oil and reducing operating costs. |
