Commercial Time User-Friendly Gas Steam Cooker Steamer
- Choose from 6-, 8-, 10-, 12-, and 24-tray capacities.
- Circulating steam supports the cooking process.
- Real-time temperature control supports daily operation.

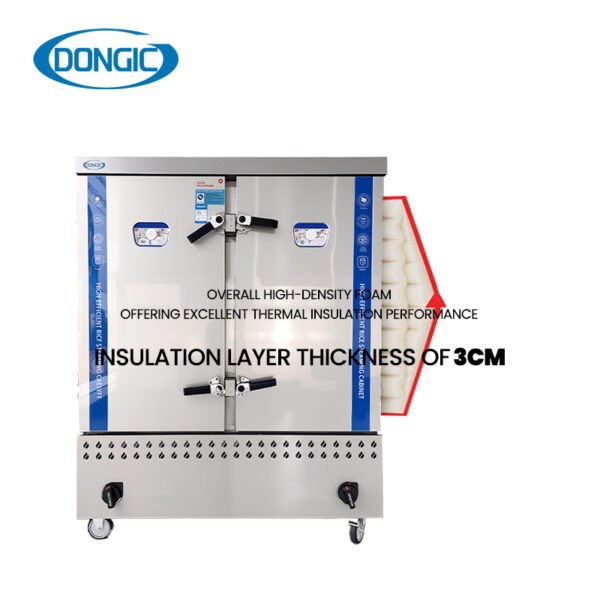

- The 3cm insulation layer supports thermal insulation.
- Automatic water inflow and overflow improve operating reliability.
- Flameout and gas cut-off protection support safer operation.
- A water level gauge helps prevent dry burning.
- The detachable water tank facilitates maintenance.
- Each 400*600*50 pan has a 4kg capacity.
- Brake mute wheels support positioning and movement.
✓ OEM & ODM Available✓ MOQ 1 Set✓ 10–15 Day Production✓ Worldwide Shipping
Share tray capacity and gas type for an exact quote.
Factory support for restaurants, hotels, and commercial kitchens.
Get an Exact Quote for This Commercial Gas Steam CookerCLICK TO OPEN FORM →MOQ 1 Set · 10–15 Day Production · Product name and link filled automatically
Add your required tray capacity, model, gas type, quantity, and destination so our team can quote accurately.
Built for High-Capacity Commercial Gas Steaming
Designed for commercial kitchens that need 6- to 24-tray steaming capacity with circulating steam and real-time temperature control. Multiple cabinet sizes and gas configurations support different production requirements.
Key Features
- Circulating steam, real-time temperature control, overall high-density foaming, insulation layer thickness of 3cm, and excellent thermal insulation effect.
- Automatic water inflow and overflow device ensure safer and more reliable use. The new-type safe multi-airbag embedded silicone door seal provides a secure and firm seal.
- Six-bolt large hinges, which are more firm and durable; there are supporting ribs on both sides of the box body, ensuring long-term durability and no deformation.
- Rotary electronic ignition system, compliant with the gas 3C standard, and featuring a pull-out ignition device.
- Equipped with a flameout and gas cut-off protection device, making it safer.
- The water level gauge displays the water level in the tank, preventing dry burning.
- The water tank adopts a detachable and replaceable design, facilitating maintenance.
- Adopts brake mute wheels and a steam cap with a diameter of four centimeters.
- Highly efficient and energy-saving, with simple operation.
Technical Specifications
| Model | DGSCK09-G6, DGSCK09-G8, DGSCK09-G10, DGSCK09-G12, DGSCK09-G24, DGSCK09-G24V |
| Dimension (mm) | 720*640*1150 - 1020*850*1740 |
| Capacity | 6 trays, 8 trays, 10 trays, 12 trays, 24 trays |
| Pan Size(mm) | 400*600*50 |
| Capacity Per Pan | 4kg |
| Water Inlet Pressure | ≤＜4kPa |
| Number of Air Inlets | 1 |
| Gas Consumption | 1.1 m³/hour |
| Wiring Method | Y-type connection |
| Diameter of Water Inlet | DN 15mm |
| Steam Pressure | ≤＜0.02 MPa |
| Power | Natural gas: 1.0, Liquefied petroleum gas: 0.69 |
