Eco-Friendly Modular Commercial Steam Cabinet
- Choose from 6-, 8-, 10-, 12-, and 24-tray capacities.
- Circulating steam supports the cooking process.
- Real-time temperature control supports daily operation.
- The intelligent touch screen allows temperature and time adjustment.
- Automatic water intake supports routine operation.
- Water shortage, power-off, and anti-dry-burning protection are built in.
- The 3cm insulation layer supports thermal insulation.
- A 304 stainless steel electric heating tube is included.
- Each 400*600*50 pan has a 4kg capacity.
- The embedded silicone door seal supports reliable sealing.
✓ OEM & ODM Available✓ MOQ 1 Set✓ 10–15 Day Production✓ Worldwide Shipping
Share tray capacity and power requirement for an exact quote.
Factory support for restaurants, hotels, and commercial kitchens.
Get an Exact Quote for This Commercial Steam CabinetCLICK TO OPEN FORM →MOQ 1 Set · 10–15 Day Production · Product name and link filled automatically
Add your required tray capacity, model, voltage, power, quantity, and destination so our team can quote accurately.
Built for Flexible High-Capacity Electric Steaming
Designed for commercial kitchens that need 6- to 24-tray steaming capacity with circulating steam and real-time temperature control. Intelligent timer and thermostat functions support adjustable temperature and time settings.
Key Features
- Circulating steam, real-time temperature control, overall high-density foaming, 3cm thickness of the insulation layer, and excellent thermal insulation effect.

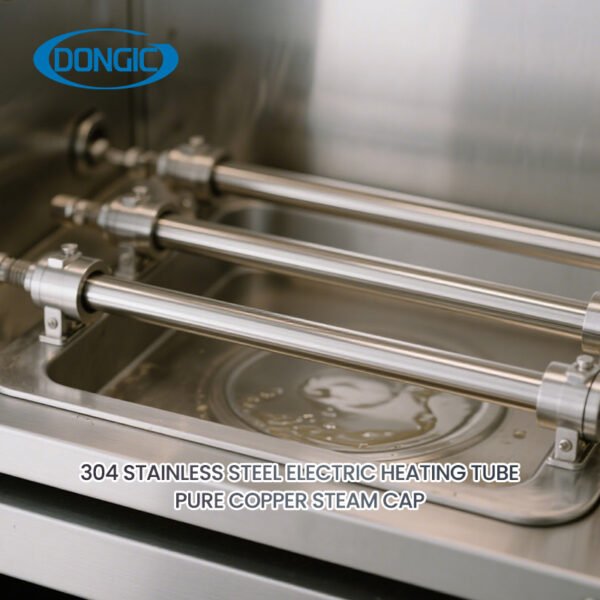

- Automatic water intake, with built-in water shortage and power-off protection function, anti-dry burning, making it safer and more reliable to use. 304 stainless steel electric heating tube, pure copper steam cap.
- New type of multi-airbag, embedded silicone door seal, with a more reliable sealing effect.
- Six-bolt large hinges for greater sturdiness and durability; there are supporting ribs on both sides of the cabinet, ensuring long-lasting use without deformation.
- Intelligent control touch screen, timer and thermostat functions, which allow free adjustment of temperature and time, making it more practical and worry-free to use.
- High efficiency and energy saving, easy to operate.
Technical Specifications
| Model | DGSCK07-E6, DGSCK07-E8, DGSCK07-E10, DGSCK07-E12, DGSCK07-E24, DGSCK07-E24V |
| Dimension (mm) | 720*640*1150 - 1020*800*1740 |
| Capacity | 6 trays, 8 trays, 10 trays, 12 trays, 24 trays |
| Pan Size(mm) | 400*600*50 |
| Capacity Per Pan | 4kg |
| Water Inlet Pressure | ≤＜4kPa |
| Wiring Method | Y-type connection |
| Diameter of Water Inlet | DN 15mm |
| Steam Pressure | ≤＜0.02 MPa |
| Voltage/Power | Electric: 380V~50/60Hz, 9kW-12kW |
