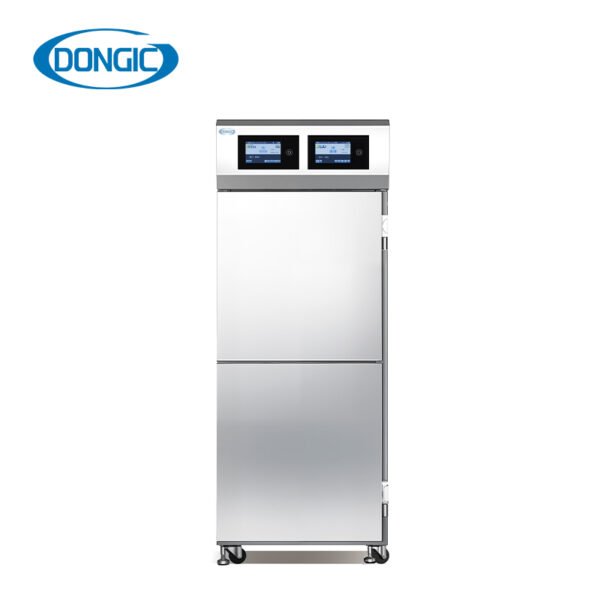

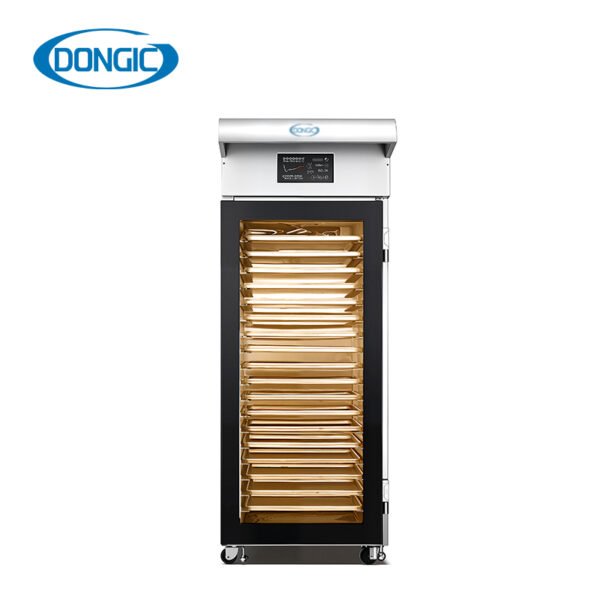

Name: Multi-Zone Proofing Cabinet with Freezer Function | DONGIC
SKU: DGBFGD01-E18/36, DGBFGD02-E16/32

Commercial Proofing Cabinet with Freezer Function

Freezing, refrigeration, thawing, and fermentation modes.

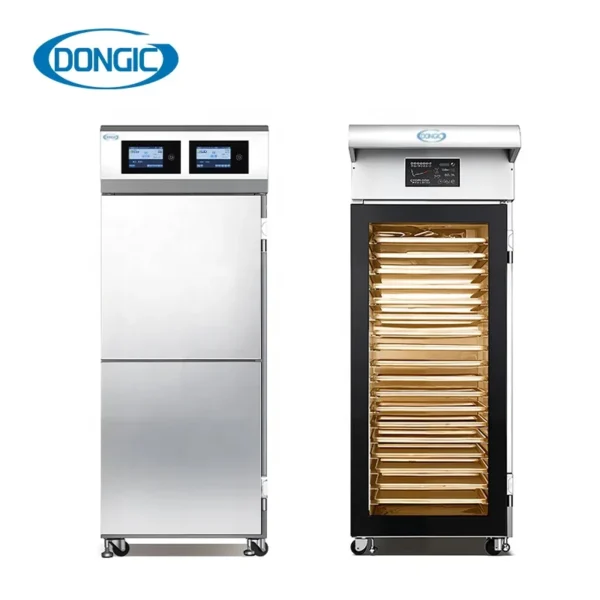

18/36-tray and 16/32-tray configurations.
-15~50℃ temperature and humidity up to 99%RH.
Nixie tube or 7-inch color touch control options.
National standard 304 stainless steel cabinet.

✓ OEM & ODM Available✓ MOQ 1 Set✓ 10–15 Day Production✓ Worldwide Shipping

Share tray configuration and control system for an exact quote.

Request a Quote →

Factory support for bakeries and commercial kitchen buyers.

▶

Get an Exact Quote for This Retarder Proofer CabinetCLICK TO OPEN FORM →MOQ 1 Set · 10–15 Day Production · Product name and link filled automatically

Add your tray configuration, preferred control system, required quantity, and destination so our team can quote accurately.

Built for Multi-Stage Dough Control and Flexible Fermentation Planning

Designed for bakeries coordinating freezing, refrigeration, thawing, and fermentation in one cabinet workflow. Select the required tray configuration and control system to match production planning.

Key Features

Modular functions allow automatic mode selection or separate use of freezing, refrigeration, thawing, and fermentation functions.

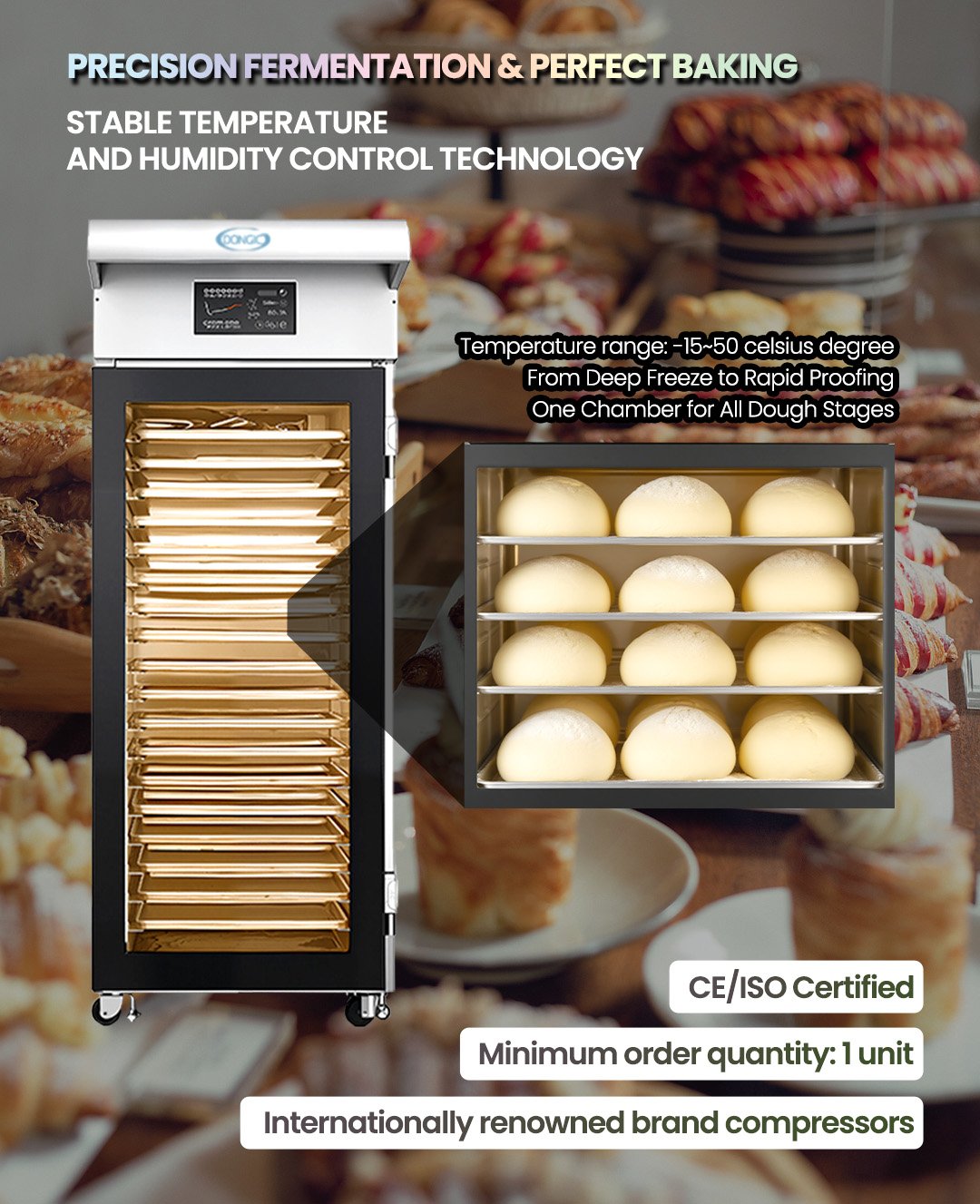

Stable temperature and humidity control technology works with a built-in circulation fan, American heating tubes, and spray-type humidification.

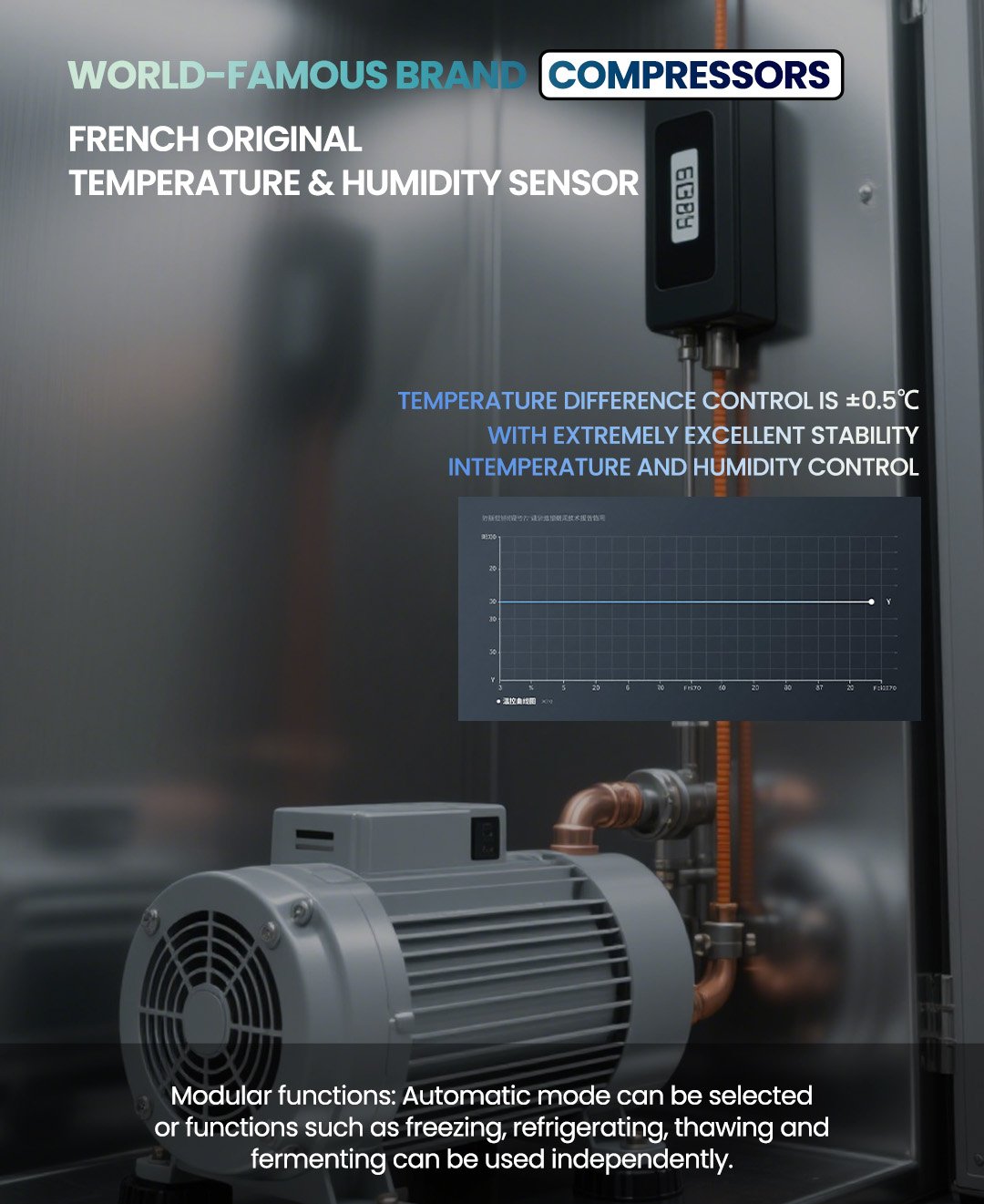

Compressor system uses globally recognized brands such as Tecumseh or Secop, while the temperature and humidity sensor is sourced from France.
Heating and humidifying method uses built-in fan hot air circulation for more stable cabinet conditions.
The cabinet is made of national standard 304 stainless steel for durable daily bakery use.

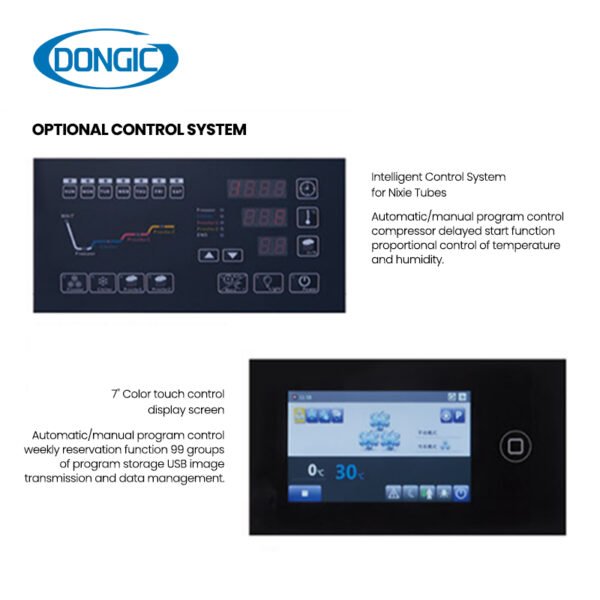

Optional nixie tube intelligent control system supports automatic/manual program control, compressor delayed start, and proportional control of temperature and humidity.
Optional 7-inch color touch control display supports automatic/manual program control, weekly reservation, storage of 99 program groups, USB image transmission, and data management.

Technical Specifications

Model	DGBFGD01-E18/36 (18 Deck 36 trays) DGBFGD02-E16/32 (16 Deck 32 trays, double doors and double systems with independent control)
Dimension (mm)	80011602080 / 80011602120
Inner Chamber Size(mm)	6758601545 / 6758601545
Refrigeration Method	Air-cooled type, Refrigerant R404A
Temperature Control Range	-15~50℃
Humidity Control Range	Indoor humidity ~99%RH
Voltage/Power	220V~50/60Hz, 3.98kW
Door Opening Method	Right-opening single door / Right-opening double doors
