Fully Automatic One-button Activation Commercial Steam Cabinet
- Choose a 6-, 8-, 10-, 12-, or 24-tray configuration.
- One-button activation starts automatic mode.
- Manual mode remains available for flexible operation.
- Circulating steam and real-time temperature control support daily steaming.
- Water-shortage and power-failure protection helps prevent dry burning.
- A built-in float valve and overflow valve support convenient use.
- A 304 stainless steel heating tube and pure copper steam cap are included.
- The 3cm insulation layer supports thermal insulation.
- Each 400*600*50 pan has a 4kg capacity.
- Power configurations range from 9kW to 12kW.
✓ OEM & ODM Available✓ MOQ 1 Set✓ 10–15 Day Production✓ Worldwide Shipping
Share tray capacity and voltage requirement for an exact quote.
Factory support for restaurants, hotels, and commercial kitchens.
Get an Exact Quote for This Automatic Steam CabinetCLICK TO OPEN FORM →MOQ 1 Set · 10–15 Day Production · Product name and link filled automatically
Add your required tray capacity or model, voltage requirement, quantity, and destination so our team can quote accurately.
Built for Flexible Automatic and Manual Steam Cooking
Designed for commercial kitchens that need 6-, 8-, 10-, 12-, or 24-tray steaming capacity. One-button automatic activation and a separate manual mode support flexible operation, while circulating steam and real-time temperature control support daily steaming.
Key Features

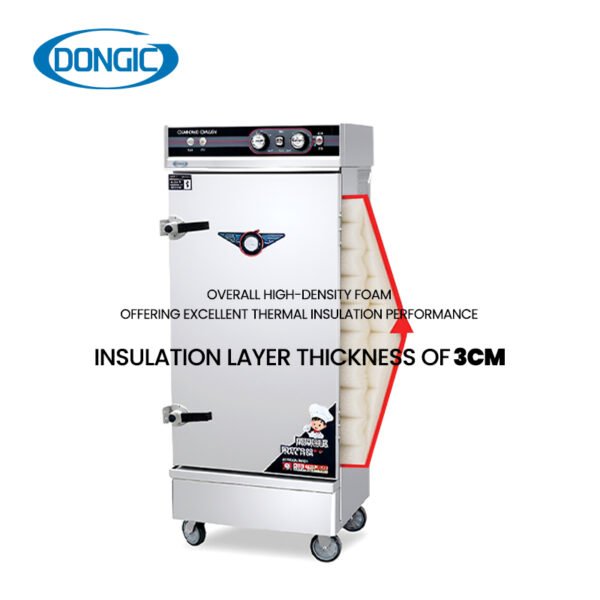

- Circulating steam, real-time temperature control, overall high-density foaming, insulation layer thickness of 3cm, and excellent thermal insulation effect.
- It has built-in protection functions against water shortage and power failure, and prevents dry burning, making it safer and more reliable to use.
- It is equipped with a built-in float valve and overflow valve for convenient use. It features a 304 stainless steel electric heating tube and a pure copper steam cap.
- New type of multi-airbag, embedded silicone door seal, with more reliable sealing.
- Six-bolt large hinge, more sturdy and durable.
- There are supporting ribs on both sides of the cabinet, which are durable and not easy to deform.
- One-button activation for automatic mode, and simple mechanics for manual mode. You can easily switch freely between manual mode and automatic mode.
- Highly efficient and energy-saving, with simple operation.
Technical Specifications
| Model | DGSCK04-E6, DGSCK04-E8, DGSCK04-E10, DGSCK04-E12, DGSCK04-E12V, DGSCK04-E24, DGSCK04-E24V |
| Dimension (mm) | 720*640*1150 - 1020*800*1740 |
| Capacity | 6 trays, 8 trays, 10 trays, 12 trays, 24 trays |
| Pan Size(mm) | 400*600*50 |
| Capacity Per Pan | 4kg |
| Water Inlet Pressure | ≤＜4kPa |
| Wiring Method | Y-type connection |
| Diameter of Water Inlet | DN 15mm |
| Steam Pressure | ≤＜0.02 MPa |
| Voltage/Power | Electric: 380V~50/60Hz, 9kW-12kW |
