Name: 700/900 Full Stainless Steel 20/40L Vertical Gas/Electric Fryer - Dongic
Brand: DONGIC
SKU: DGFMJ01-9-CG1/1, DGFMJ02-9-CE1/1, DGFMJ01-7-CG1/1

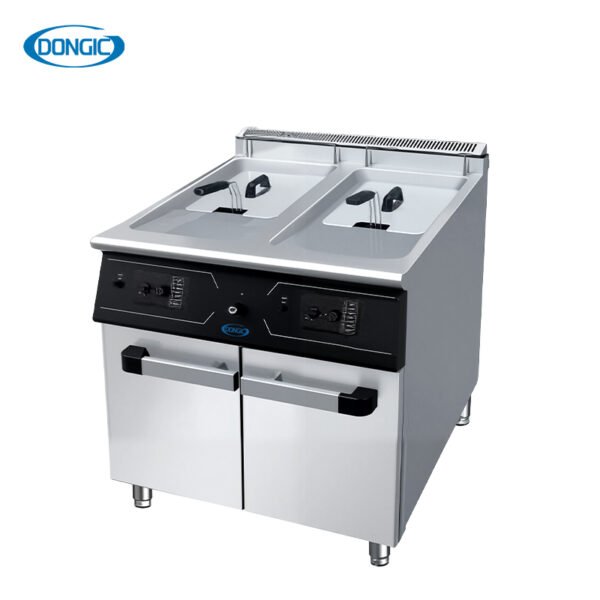

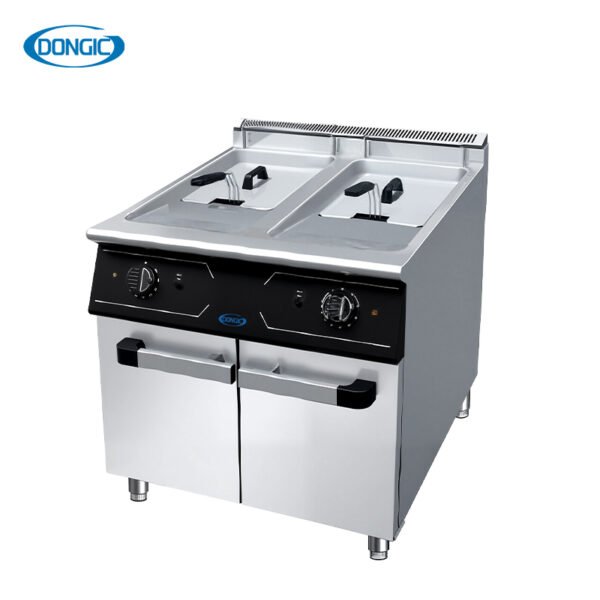

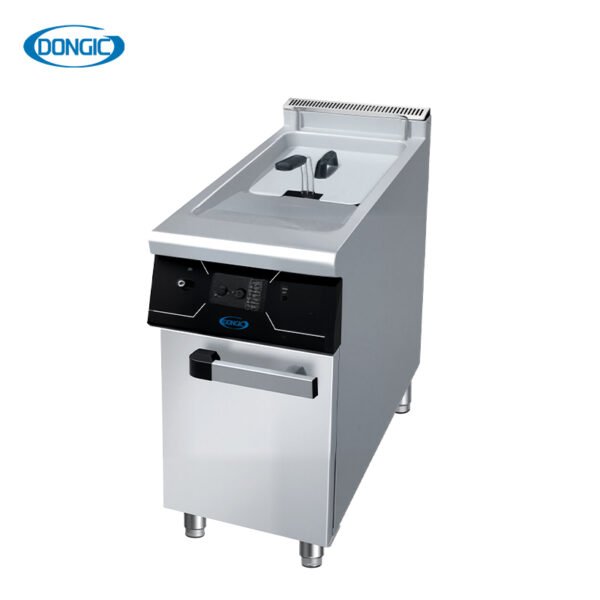

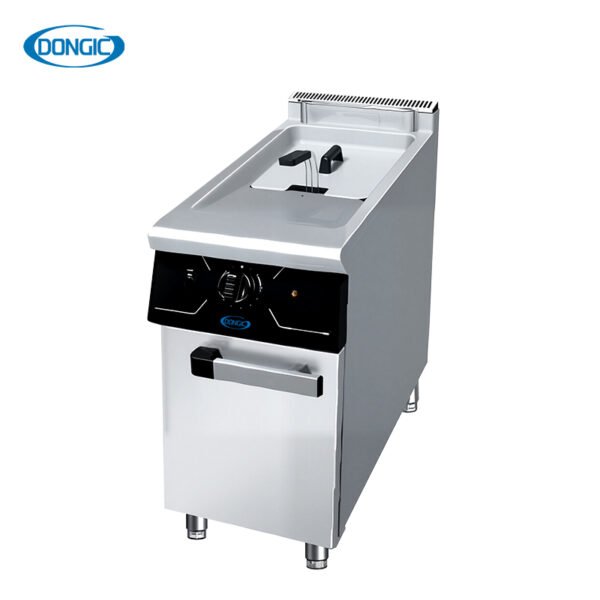

700/900 Full Stainless Steel 20/40L Vertical Gas/Electric Fryer

Full stainless steel chassis construction.
Adjustable leveling feet for operational stability.
Gas fire-tube and electric heating configurations.
V-shaped cold oil zone on electric models.
230℃ thermal cutoff protection.
Positive-lock drain valve mechanism.
50-190℃ temperature control range.

✓ OEM & ODM Available✓ MOQ 1 Set✓ 10–15 Day Production✓ Worldwide Shipping

Share series and fuel requirements for an exact quote.

Request a Quote →

Factory support for restaurants and commercial kitchens.

▶

Get an Exact Quote for This Vertical Gas/Electric FryerCLICK TO OPEN FORM →MOQ 1 Set · 10–15 Day Production · Product name and link filled automatically

Add the preferred series, fuel type, vat configuration, products to fry, utility requirement, quantity, and destination so our team can quote accurately.

Key Features

Full stainless steel chassis construction with adjustable leveling feet ensures operational stability, featuring rapid heat-up capability and a high-capacity oil vat.

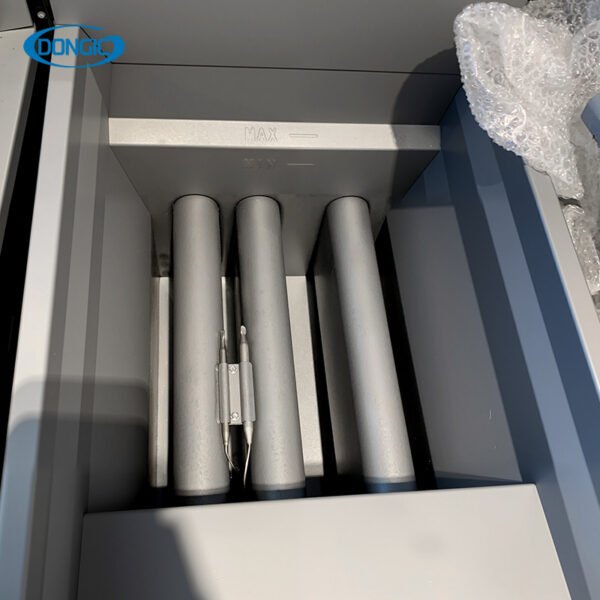

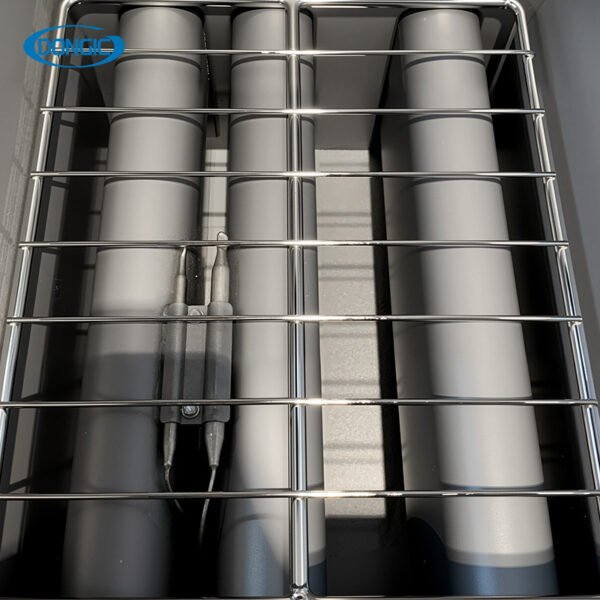

Gas Fire-tube heating system delivers superior thermal efficiency, effectively preventing residue adhesion and thermal runaway in the fry vat.

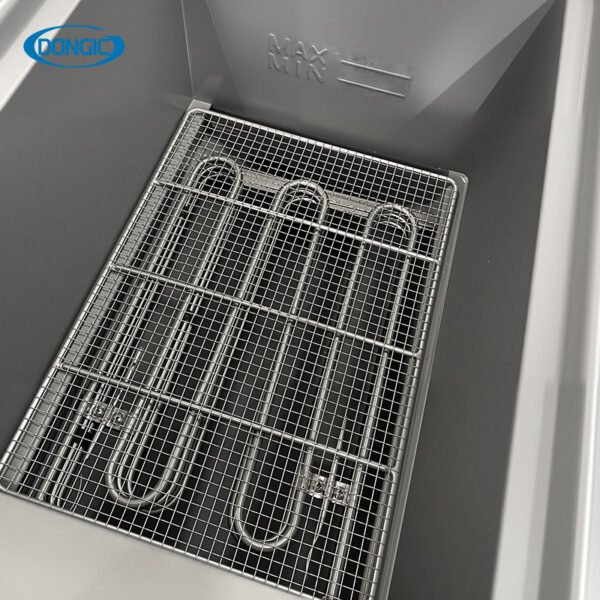

Electric model with a “V”-shaped cold oil zone for depositing oil residues, preventing them from adhering to the heating tube and burning.
Thermal cutoff protection with precision trip point at 230℃ ensures failsafe operation.
Drain valve equipped with a positive-lock mechanism prevents inadvertent operation.

Technical Specifications

Model:	900 Series Gas: DGFMJ01-9-CG1/1, DGFMJ01-9-CG2/2900 Series Electric: DGFMJ02-9-CE1/1, DGFMJ02-9-CE2/2700 Series Gas: DGFMJ01-7-CG1/1, DGFMJ01-7-CG2/2700 Series Electric: DGFMJ02-7-CE1/1, DGFMJ02-7-CE2/2
Dimension (mm):	900 Series: 400900(850+90), 800900(850+90)700 Series: 360700(850+90), 700700(850+90)
Oil Vat Dimensions (mm):	260360200
Fry Basket Dimensions (mm):	310230150
Capacity:	700/900 Series Gas: 20L/20L2700/900 Series Electric: 24L/24L2
Voltage/Power:	Electric: 12kW/12kW2, 380-400V/3N~50/60HzGas: 15.5kW/15.5kW2, LPG2800Pa(kg/h), NG2000Pa(m³/h)
Temperature Control Range:	50-190℃
